Описание
| Application Area and Product Feature | |||||||
| ● Explosion protection to -GB standard ● Can be applied in Zone 1 and Zone 2 Zone 21 and Zone 22 ● This product has 6 types for selection: A, B, C, D, E and d. ● If the cable inlet shall be reducing, please note it when ordering. | |||||||
| Explosion protection | Gas explosion protection | Ex dⅡC T6 Gb | |||||
| Dust explosion protection | Ex tD A21 IP66 T80℃ | ||||||
| Conformity to standards | GB3836.1,GB3836.2,GB12476.1,GB12476.5 | ||||||
| Material of enclosure | Aluminum alloy enclosure, power coated surface, Industrial grey with dark lines (RAL7035) | ||||||
| Exposed fasteners | Stainless steel | ||||||
| Rated current | 20A | ||||||
| Rated voltage | MAX 500V AC | ||||||
| Terminal Block | Picture |   | |||||
| Terminal quantity | 4 | ||||||
| Cable cross section | 0.5～2.5mm2 | ||||||
| Protection grade | IP66 | ||||||
| Ambient temperature | -20℃～+40℃ | ||||||
| Cable entries | thread | G1/2 | G3/4 | G1 | G11/4 | G11/2 | G2 |
| cable outer diameter(mm) | φ7~φ10 | φ10~φ14 | φ12~φ18 | φ15~φ26 | φ18~φ30 | φ25~φ37 | |
| Notice | The thread can be customized as M20~M63x1.5 or NPT1/2~NPT2. | ||||||

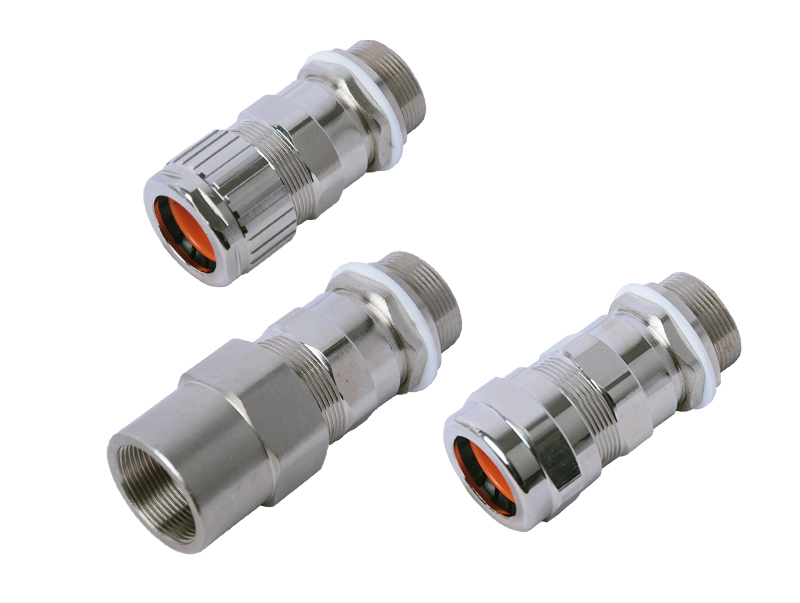

| Cable glands(optional) | HLBM-? is recommended，refer to P？ for details | ||||||
| Main application | Type A. B, C, D, E are used for wiring or branching in the circuit; Type d as accessories for hanging type, ceiling type or wall type of light fixtures. | ||||||
